Split Wall Mounted 1 Ton 8000S #1765
- Price
- $7,942.50
No credit card needed. We will contact you to confirm your order details.
CellarPro's 8000S-EC cooling units (1 Ton Nominal) are engineered for wine cellars up to 2000* cubic feet in both commercial and residential wine cellars.

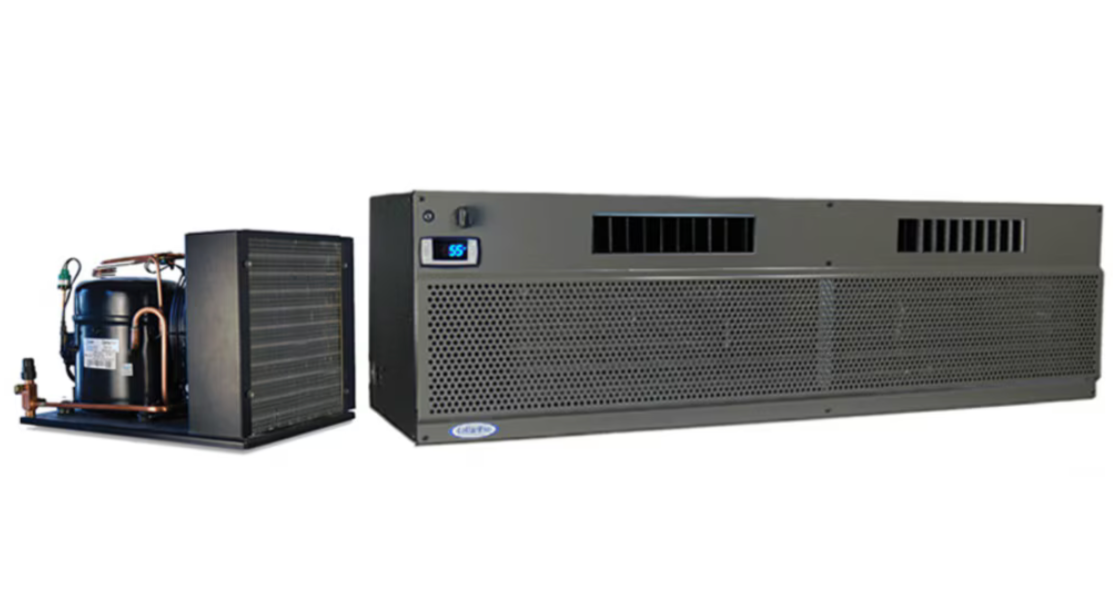

- CellarPro Mini-Split 8000S-EC units are designed to be installed with the evaporator inside the cellar, and the condensing unit in a remote location.
Brand: CellarPro
UPC: 077757017650
Size:

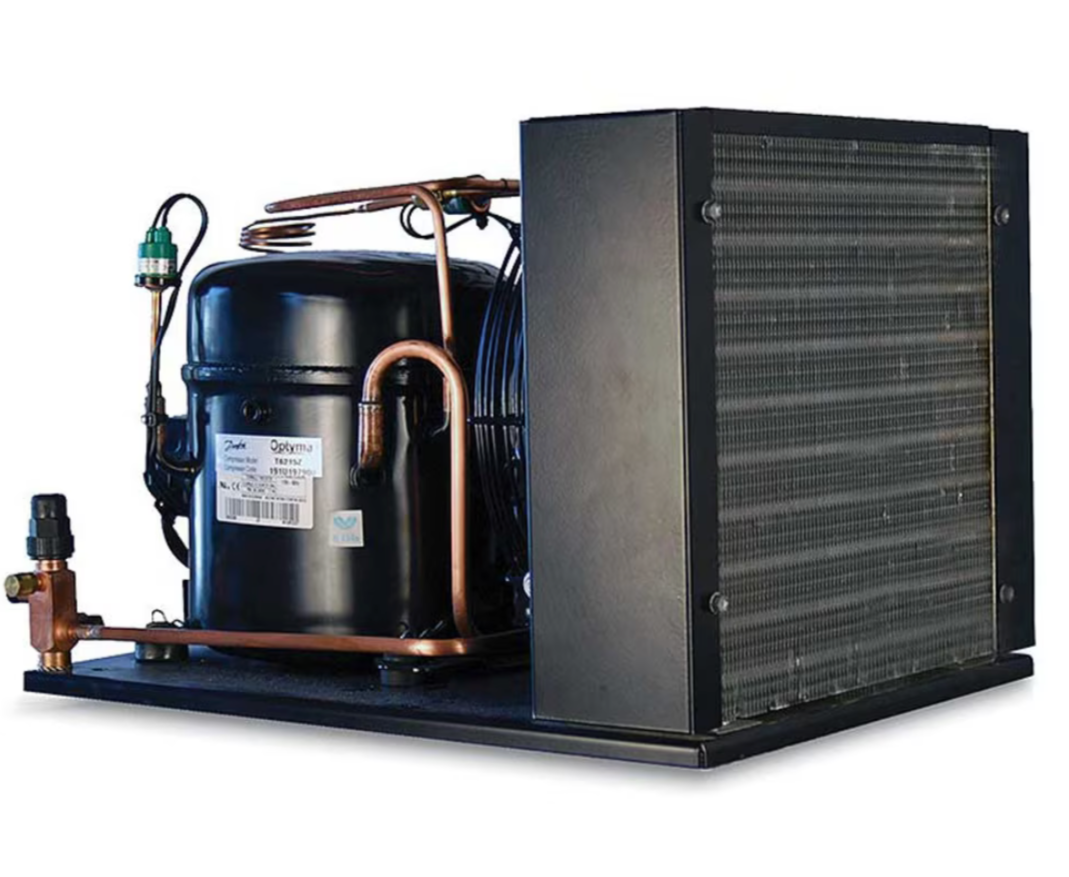

Condensing Unit Dimensions:
- 76 lbs
- 16 3/4w x 20 3/4d x 14h (in)

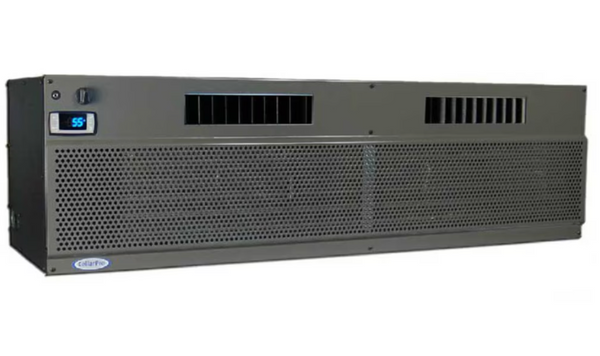

Evaporator Unit Dimensions:
- 85 lbs
- 46 3/8w x 14 3/8d x 13 1/4h (in)
Power/Rating:
115V AC / 60 Hz
System Amps:
- Common dedicated 25-amp circuit is required to power the unit.
- Startup: 51.0 Amps
- Unit Amp Rating: 13.8 Amps (high fan speed)
BTUH @ 55F:
- Low Fan Speed: 5961
- Medium Fan Speed: 6346
- High Fan Speed: 6713
- 1 Ton Nominal
Decibels:
Evaporator Decibels
- Low Fan Speed: 54 dbA
- Med Fan Speed: 58 dbA
- High Fan Speed: 66 dbA
Condensing Unit Decibels
- Indoor: 67
- Outdoor: 65
Sizing Table: Click here to view sizing table
Warranty:
- 2 Years (Entire System)
- To activate your warranty, you must complete and return our Split Installation Checklist.
- Optional Extended Warranty sold separately.
Click on one of the following links for more information:
- Spec Sheet
- Sizing Table
- Monthly Operating Cost
- Evaporator Cut Sheet
- Condensing Unit Cut Sheet
- Evaporator Mounting Instructions
- Line Sizing Chart
- Configuration Options
- Wiring Diagram - Dual Power/ Valve Control
- Wiring Diagram - Single Power / Electronic Control
- Refrigerant Piping Diagram
- Refrigerant Piping Handbook
- Owner's Manual
- Product Brochure
- Installation Checklist
