$9,292.50

No credit card needed. We will contact you to confirm your order details.

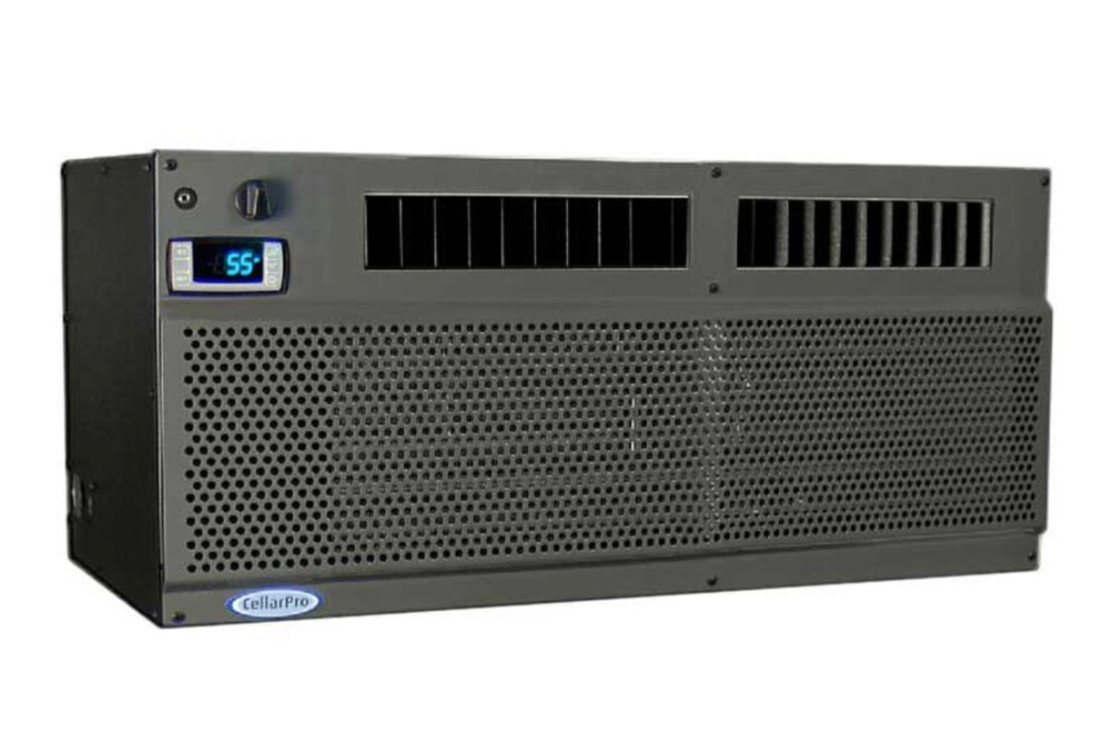

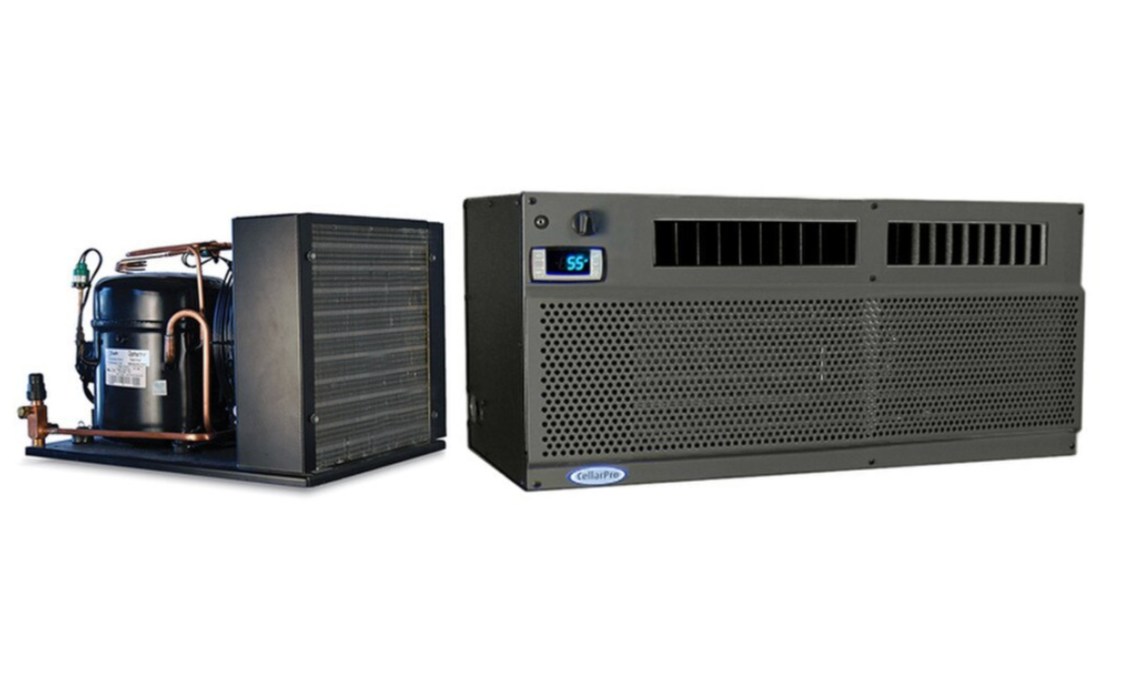

CellarPro 3000Shqc-EC Quickconnect 25-ft Cooling Unit (P/N 19251). NOW WITH ENERGY-EFFICIENT EC FANS! CellarPro engineered the Mini-Split 3000Shqc-EC cooling system to provide maximum cooling power and adjustable humidity control with fast, easy installation for cellars up to 600 cubic feet. Split refrigeration systems separate the evaporator from the condensing unit, allowing the noise and heat from the condensing unit to be located away from interior living areas. All air-cooled refrigeration equipment requires fresh air intake to dissipate the heat generated by the cooling unit. The fresh air intake CANNOT come from the wine cellar space - it must come from space outside the cellar. Suitable for internal or external installations, the Mini-Split 3000Shqc-EC includes a variable-speed fan on the evaporator with a low setting for quieter operation and a high setting for maximum power.

Brand: CellarPro

Size:

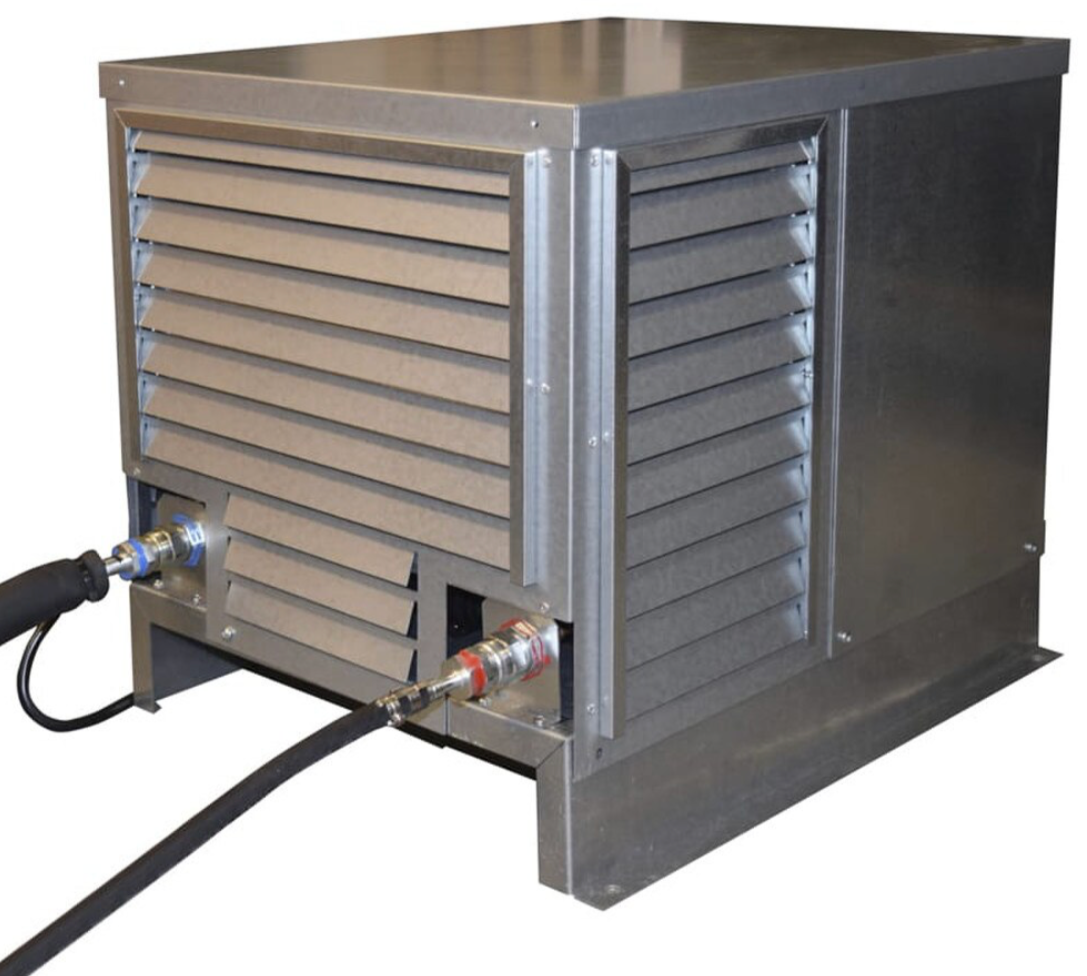

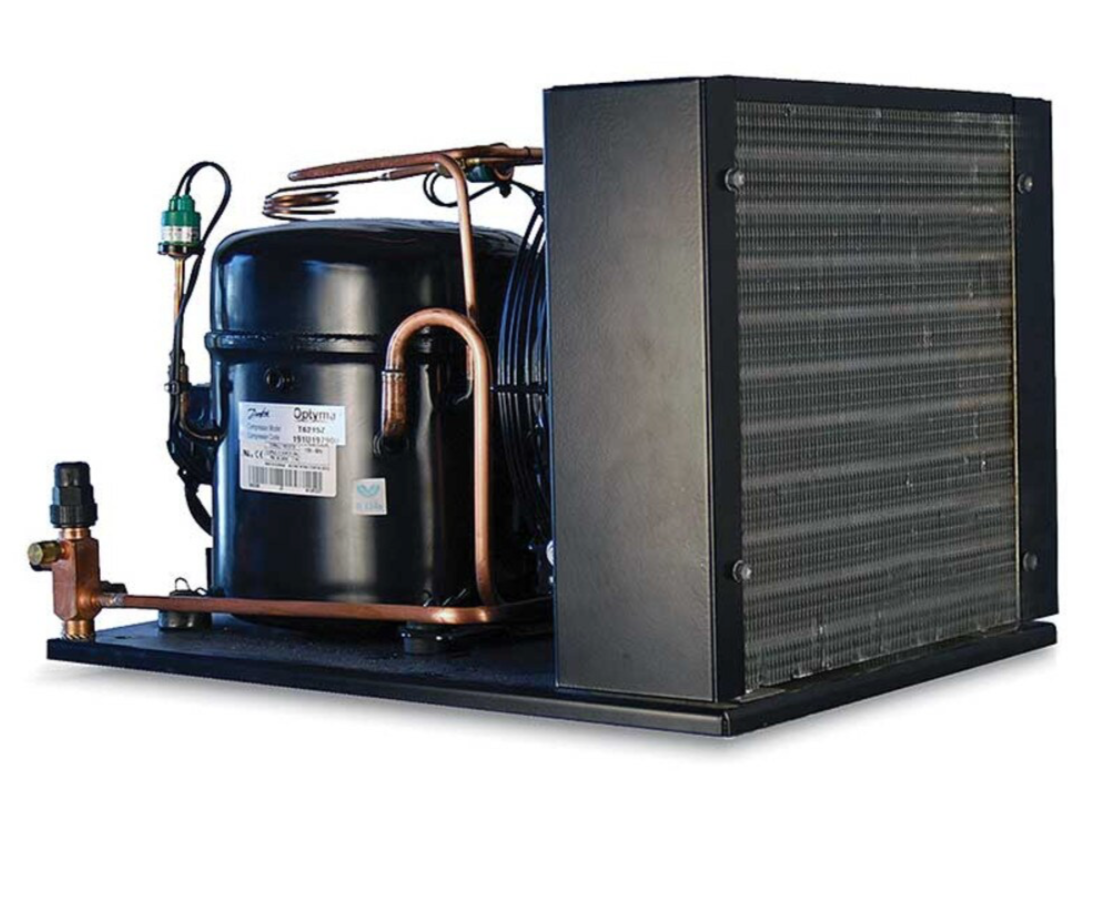

Condensing Unit Dimensions:
- 45 lbs
- 19 3/8w x 23 1/4d x 18 3/4h(in)
Evaporator Unit Dimensions:
- 65 lbs
- 30 3/8w x 14 1/4d x 13 1/4h (in)
Shipping Weight: 144 lbs

Power/Rating:
115V AC / 60 Hz

System Amps:
- Dedicated 15-amp circuit is required to power the condensing unit.
- Shared 15-amp circuit can be used to power the evaporator.
- Startup: 28.2 Amps
- Unit Amp Rating: 5.6 Amps (high fan speed)

BTUH @ 55F / Evaporator Decibels
- Low Fan Speed: 2144 / 51 dbA
- Med Fan Speed: 2398 / 55 dbA
- High Fan Speed: 2491 / 63 dbA
- 1/3 Ton Nominal

Condensing Unit Decibels
- Indoor: 64
- Outdoor: 62

Capacity: 2491 BTUH @ 55F

Sizing Table: Click here to view sizing table

Warranty:
- 2 Years (Entire System)
- Optional Extended Warranty (sold separately.)
